Miller 8183 Anchor Connector: Portable Fall Protection System

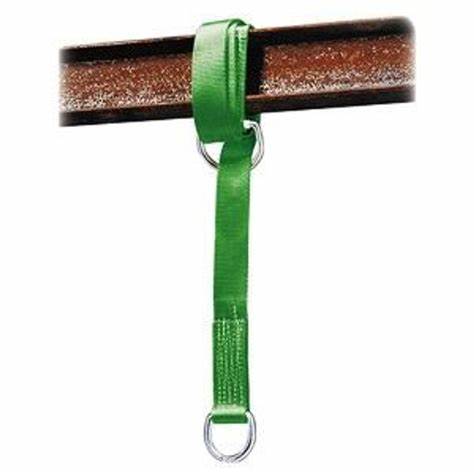

The Miller 8183 is an anchoring device specifically designed for creating secure connection points in industrial and construction environments. Thanks to its portable strap configuration, it is ideal for wrapping around I-beams and other fixed structures, allowing workers to reliably secure themselves during tasks at height. Its design prioritizes ease of use and structural strength, making it a critical component for any fall arrest system.

Technical Characteristics and Safety Specifications

• Physical Configuration: High-tenacity polyester webbing strap with a length of 6 feet (1.8 meters). The system uses a 2-inch O-ring designed to slide through a 3-inch D-ring, creating a securing "loop" that tightly adjusts to the support structure.
• Mechanical Strength: The complete assembly (webbing and hardware) has a minimum tensile strength of 5,000 lbs (22 kN), complying with industrial safety standards for dynamic impact forces.
• Operational Capacity: Designed to support a maximum user capacity of up to 400 lb (181 kg), including the weight of the worker, tools, and personal equipment.
• Regulatory Compliance: Product certified under strict international safety standards: ANSI Z359.1, ANSI A10.32, and OSHA 1926.502.

Safety Warning and Usage Limitations

IMPORTANT: This connector must be inspected before each use. Do not use the equipment if the polyester webbing shows cuts, fraying, chemical burns, or UV degradation. Steel rings must be free of deformation, corrosion, or cracks. Installation must be carried out exclusively on structures with certified capacity to withstand the fall arrest forces required by current local regulations.

Maintenance Instructions

• Cleaning: Wash only with warm water and mild soap. Do not use solvents or aggressive chemical agents, as they can compromise the integrity of the polyester fiber.
• Drying: Dry in a ventilated area, away from direct heat sources or prolonged sun exposure.
• Storage: Store in a cool, dry place free of chemical fumes or corrosive environments that could accelerate material wear.
