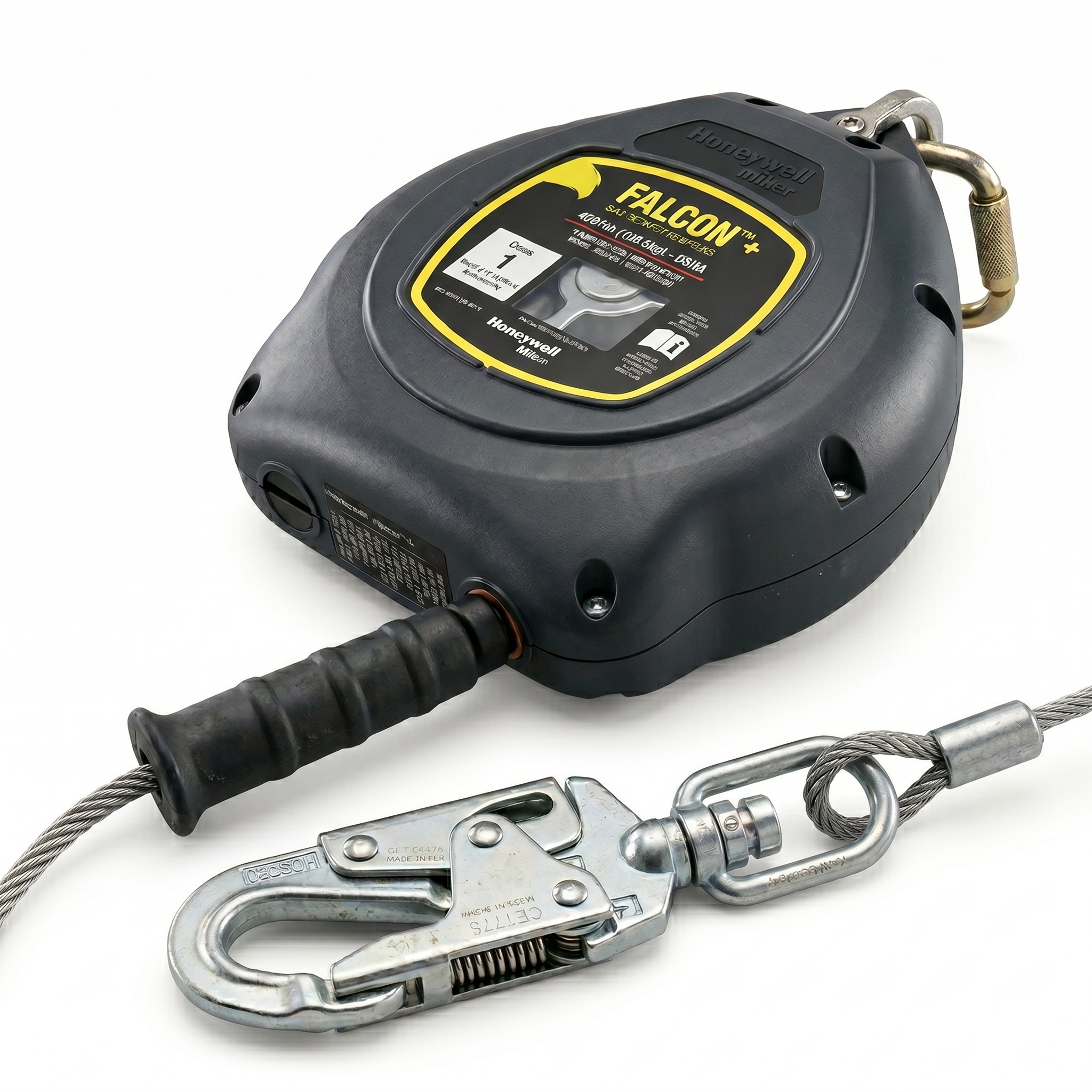

Miller Falcon Self-Retracting Lifeline: High-Strength Engineering and Fall Protection

The Miller Falcon series is an industrial-grade fall protection system, designed to withstand the most extreme conditions in construction and infrastructure maintenance. Its high-impact nylon casing protects a high-precision internal mechanism, ensuring operational reliability in environments where mechanical durability is non-negotiable. It is standard equipment for operators requiring a wide range of mobility and the safety of an automatic braking system in the event of a fall.

Technical Characteristics and Operational Capabilities

High-Strength Architecture: Constructed with professional-grade materials (high-impact resistant nylon casing, 3/16" galvanized or stainless steel cable in 7x19 configuration). The stainless steel bushing and brass braking mechanism ensure an extended service life under intensive use.

Safety Performance (ANSI Z359.14 Class B): Designed for controlled dynamic arresting. It offers an average arresting force of 900 lbs (4 kN), keeping the maximum impact force below industrial safety limits (1,800 lbs / 8 kN), which reduces the risk of traumatic injuries to the user during the arrest event.

Versatility of Reach: Allows for coverage of various work area needs with complete safety.

Global Regulatory Compliance:

• • Equipment certified under critical international standards: OSHA 1926.502, ANSI A10.32, ANSI Z359.14 Class B, and CSA Z259.2.2.

Safety Notice and Limitations of Use

IMPORTANT: This equipment is a fall protection safety device. The maximum working load capacity is 310 lbs (140.6 kg). Do not exceed this capacity. Mandatory inspection: Before each use, check the function of the retractable system and the condition of the steel cable. If you observe kinks, broken strands, corrosion, or if the mechanism does not lock when a sharp tug is applied, remove the equipment from service immediately. The integrity of this device is critical for your survival.

Maintenance and Care Instructions

Maintenance: Keep the cable free of excessive grease, dirt, paint, or corrosive agents that could obstruct the retraction mechanism.

Cleaning: Clean the casing with a damp cloth. Do not use chemical solvents, as they may compromise the integrity of the high-strength nylon.

Storage: Store in a clean, dry area, protected from direct sunlight, chemical vapors, or extreme temperatures that could degrade internal components.

Post-Fall Certification: If the unit has arrested a fall, it must be permanently removed from service and sent to a Miller authorized service center for evaluation or disposal, as the internal energy-absorbing components will have exceeded their useful life cycle.
