The Miller 17D-1 Carabiner is a forged steel, zinc dichromate-plated anchorage connector designed to resist corrosion and rust. With a 1-inch gate opening, this spring-loaded twist-lock carabiner ensures a secure connection for fall protection systems.

With a minimum tensile strength of 5,000 lbs (22.2kN) and a maximum working load of 400 lbs (181kg), this product is designed to offer robust and reliable safety. It meets or exceeds OSHA 1926.502, ANSI Z359-2007, and CSA Z259.12 safety standards, ensuring its quality and reliability for any work at height.

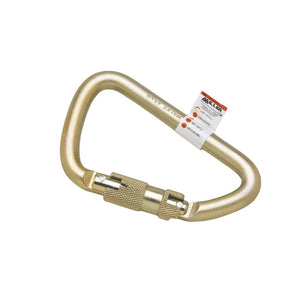

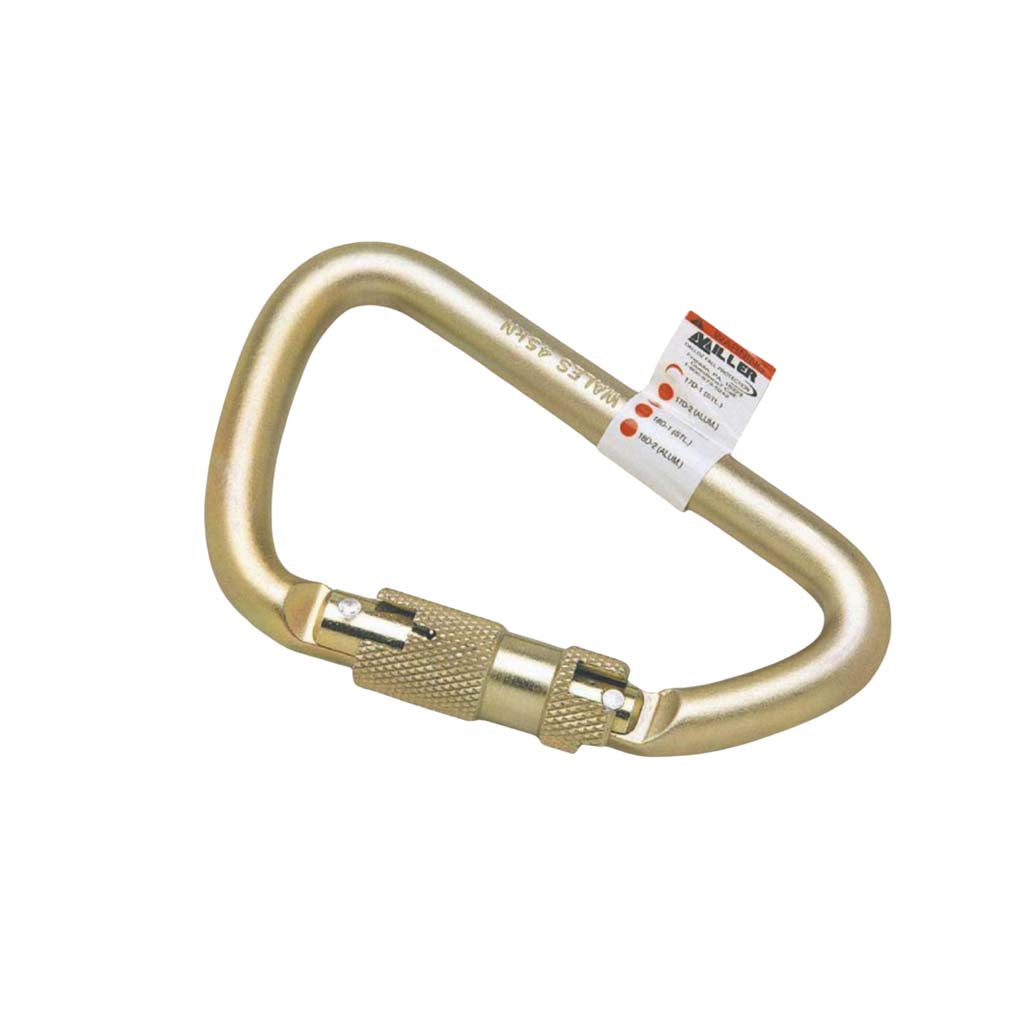

Miller 17D-1 Carabiner

• Physical Characteristics: It is a spring-loaded twist-lock carabiner, made of forged alloy steel and zinc dichromate-plated to resist rust and corrosion.
• Capacity and Strength: It has a minimum tensile strength of 5,000 lbs (22.2 kN) and a maximum working load of 400 lbs (181 kg). The proof load is 3,600 lbs.
• Certifications: Meets or exceeds the requirements of OSHA 1926.502, ANSI Z359-2007, and CSA Z259.12.

Technical Specifications

• Proof Tested: 3,600 lbs (16 kN)
• Minimum Tensile Strength: 5,000 lbs (22.2kN)
• Maximum Working Load: 400 lbs (181 kg)
• Weight: 8.0 oz (227 g)

Certification

Meets or exceeds OSHA 1926.502, ANSI Z359-2007
and CSA Z259.12 requirements.
* Meets ANSI Z359-2007 for connectors meeting 3600 lb gate requirements.
